What limits the network performance of PlutoSDR
I did some performance testing after I successfully enable the 1000M Ethernet on Zynq7010. The Ethernet is connected as eth0:
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast qlen 1000
link/ether 00:0a:35:00:01:22 brd ff:ff:ff:ff:ff:ff
inet 169.254.2.35/16 brd 169.254.255.255 scope link eth0:avahi
valid_lft forever preferred_lft forever
I directly connect the PlutoSDR with my PC with a cable, without a switch/hub in between. So I can make sure the performance will not get impacted by the switch.
Here is what I got, which is discouraging.
$ iio_readdev -n 169.254.2.35 -b 100000 cf-ad9361-lpc voltage2 | pv > /dev/null
428MiB 0:00:10 [41.4MiB/s] [ <=> ]
Compare to the performance over USB or network over USB, this is definitely faster. However I think this is not good considering we are using a 1000M Ethernet.
‘top’ command shows us something interesting:
Mem: 160556K used, 349120K free, 80K shrd, 0K buff, 146380K cached
CPU: 1% usr 42% sys 0% nic 43% idle 0% io 0% irq 13% sirq
Load average: 0.91 0.51 0.21 5/63 20330
PID PPID USER STAT VSZ %VSZ %CPU COMMAND
19838 941 root S 49840 10% 47% /usr/sbin/iiod -D -n 3 -F /dev/iio_ffs
9 2 root SW 0 0% 0% [ksoftirqd/0]
20178 19575 root R 2692 1% 0% top
19570 937 root S 2608 1% 0% /usr/sbin/dropbear -R
922 1 root S 2564 1% 0% /bin/sh /sbin/update.sh
21 2 root IW 0 0% 0% [kworker/u4:1-ev]
929 1 avahi S 3252 1% 0% avahi-daemon: running [pluto.local]
Clearly, CPU is the bottleneck. The above result is what I already enabled 2 cores. So the issue should be in the kernel somewhere as most of the time is spend in the kernel.

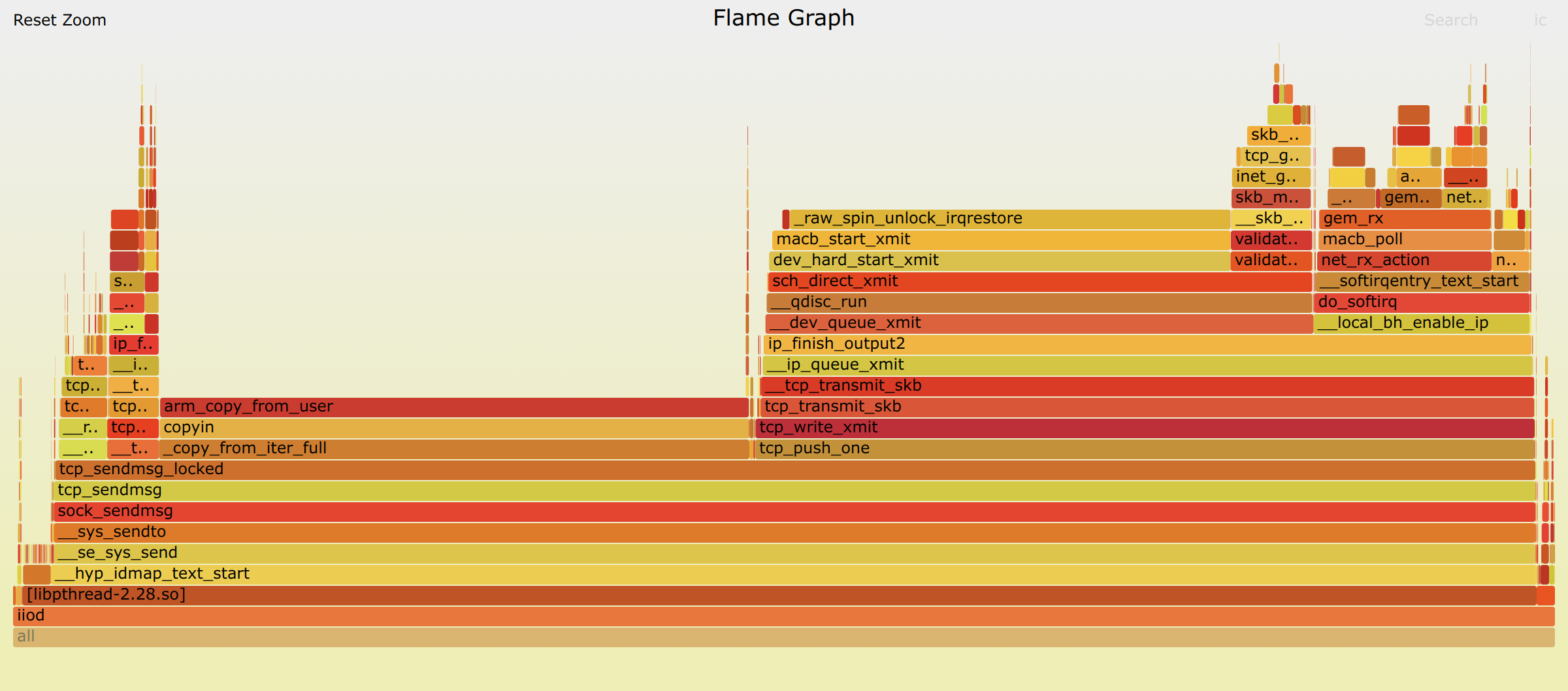

So I decided to get more details on what time is spending inside the Linux Kernel. ‘perf’ is the command I am using to collect the information. Half of the time is spending in copy the data from userland to kernel when trying to send. And another 1/3 time is spending in a spinlock.
Enough for today. I will do more investigation later this week.
